HIRE - FSM70S-KIT

Fujikura 70S Splicer Kit & CT30A Cleaver

Exceptional Service

Available for collection, delivery to your UK business or confirmed site address.

Equipment inspected after every hire, charged and ready to go.

Calibration certificates.

Support, downloads and operating guides available.

UK telephone & email support.

Dedicated account support.

Unbeatable Terms

Available on credit to pre-authorised accounts, or payable by card or cleared funds at time of hire.

Flexible hire periods - days, weeks, months or longer.

The longer the hire term, the better value.

Overview

The 70S is the latest addition to Fujikura's fusion splicer range and has been specifically designed to be more ergonomic, faster and have greater durability than the 60S, reducing splicing time to just seven seconds.

The rugged construction design adds improved reliability by resisting shock, rain and dust, allowing it to withstand a 30 inch drop test. Two of the newest features include an automated wind protector and a tube heater which has been developed for quicker splicing cycles and to reduce the number of operational steps. The unit also includes a high-resolution LCD monitor, powerful Li-ion battery for longer operation time and built in videos for on-the-go training

  • Automated and programmable wind protector

  • 9-second automated tube heater

  • Fully robust for shock, dust and moisture

  • Li-Ion battery with 200 splices/shrinks per charge

  • 5 mm cleave length for splice on connector or small package needs

  • Sheath clamp or fibre holder operation

  • On-board training and support videos

  • Internet software upgrades

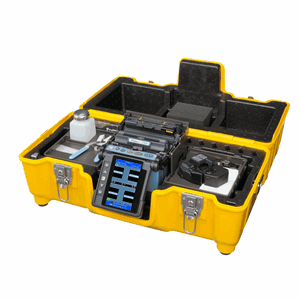

  • Multi-function transit case with integrated workstation

Features

Fibre Cleaver – CT-30A

Providing typical cleave angles of 0.5 degrees, the CT-30A is simple to use and provides consistantly good results. The blade has 16 positions which allows 48,000 operations before replacement

Overview

Designed for excellent portability, the CT-30A is equally at home in a splicing van or in a bucket truck and is ideal for FTTx applications. The 16-position blade yields 48,000 single-fibre cleaves, or 4,000 12-fibre ribbon cleaves before requiring replacement, and the built-in scrap collector conveniently stores fiber shards until they can be safely discarded.

The CT-30A Cleaver is packaged with three scrap collection options that allow the user to
tailor it to their cleaving preferences. The CT30A is delivered with the SC-01 Side Cover
installed for users that prefer not to use an automated scrap collection system. For those that prefer an automated scrap collection system, the FC-02 Fibre Collector and two scrap box options are included.

Features

  • Small size, lightweight, and easy handling

  • Applicable up to 12-fibre ribbon cleaving

  • Fibre collector equipped as standard

  • 2-action operation including fibre scrap collection

  • Operation: Push back blade -> Set fibre -> Close body

  • Blade speed and anvil speed are mechanically controlled

  • Blade is common to CT-20 series cleavers

  • 16 rotating positions, 3 height positions

  • Blade life is same as CT-20 series cleavers, 48,000 cleaving
