MPO-QR Connector

R&M Logo-004.png

R&M has introduced the MPO-QR, an MPO connector that offers maximum packing density with easy handling for hassle-free locking and unlocking via the boot. The MPO-QR connector is a multiple-fiber push-on/pull-off connector that is IEC-61754-7 and EIA/TIA-604-5 (FOCIS 5) compliant.


Method B

What are the General Characteristics of MPO-QR?

The MPO-QR is designed in such a way that it can also be operated exclusively at the connector end, i.e. the bend protection. This allows the MPO adapters to be mounted closer together. The MPO-QR increases the packing density by 50% up to 120 ports per rack unit. A highly efficient solution. A welcome benefit for those who want to pack more ports into a rack.

The cordage comes either as a Method A or Method B MPO cord in accordance with ANSI/TIA-568.3-D. The boot is colored in the same logic as MPO adapters:

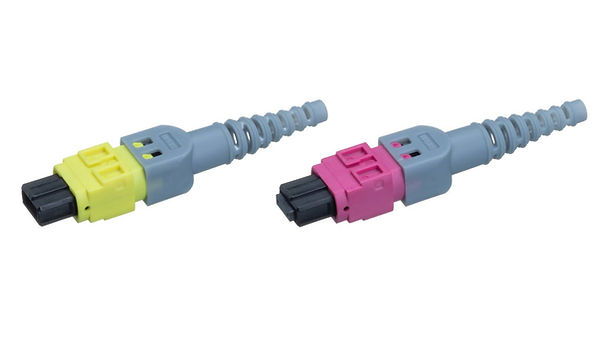

Grey for polarity B


Method A

And black for polarity A. This allows for an instant identification during installation and documentation.

Key Features

  • Greater  packing  density  In  the  rack  thanks  to  push/pull  mechanism  at  the  boot

  • Increases  port  density  by  50%

  • Simple  identification  of  polarity  with  coloured  boot

  • Can  be  equipped  with  the  R&MinteliPhy  RFID tag

MPO-QR-with-the-R-MinteliPhy-RFID-tag_i1

What type of performance can I expect from the MPO-QR?

The MPO-QR is both IEC-61754-7 and EIA/TIA-604-5 (FOCIS 5) compliant. It is offered with a maximum insertion loss of 0.3 dB with a minimum return loss of 35 dB for the multimode fiber solution and a minimum return loss of 55 dB for the singlemode solution.

The ferrule included in the MPO-QR has been developed to meet the performance of an MTP® Elite ferrule. The following table compares both specifications.

Measurement Item
Unit
MPO-QR
MTP Elite
Fiber hole eccentricity
Max
µm
0.67
0.66
Min
µm
0.16
0.09
Guide Hole Pitch
µm
4599.45 - 4599.90
4599.25 - 4599.67
G1
Guide pin hole diameter
G2
mm
mm
0.6993
0.6993
0.6991
0.6991
Fiber hole diameter
Guide pin inclination
mm
mm
0.1253 - 0.1255
0.004
0.1255 - 0.1257
0.008
  • Fiber hole eccentricity: Although maximum eccentricity is a mere 10 nm greater than that of an MTP®, the statistical dispersion is smaller in the MPO-QR

  • The MTP® has a larger fiber hole diameter than the MPO-QR

  • The R&M LAB has extensively tested both connectors in random mated tests and found very high compatibility – meaning: no loss difference between pure and mixed link configurations

It is therefore clear, that the MPO-QR has the same performance as an MTP® Elite connector.

Where can I use MPO-QR?

The MPO-QR can be utilized in any MPO-based infrastructure containing trunk assemblies, interconnect cords, and MPO patch cords. It will allow for greater packing density in the rack thanks to push/pull mechanism at the boot and can increase the port density by 50%.

As part of the Smart Networks solution, R&M’s IoT-enabled architecture and platform in Data Centers, it can be equipped with an RFID tag to automatically track patching operations.
