MTP  /MPO

®

Offers increased network capacity and flexibility.

MPO Close UP.jpg

With ever-increasing bandwidths and network connections to manage in data centres, there a some fibre patch cords, for example, LC, which can no longer meet the demands. A solution to this problem is MTP/MPO cables that can accommodate more fibres in one multi-fibre MTP/MPO connector, which has proven to be a practical solution for 40G/100G/400G high-density cabling in data centres. There are MTP/MPO cables available for different applications and requirements determined by function, polarity, fibre count and fibre mode.

MTP/MPO trunk cables are ideal for creating a structured cabling system.



Chassis Banner.jpg

Matrix Global Networks Director, Justin Niles, demonstrates our Zettonics high density solutions.

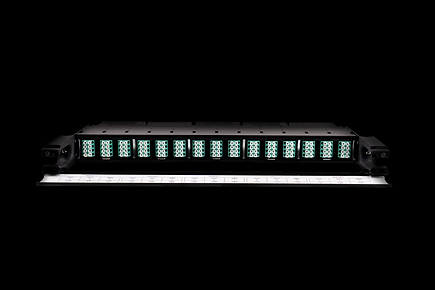

Zettonics 1U chassis, fitted with Zettonics cassettes and optional, easy retrofit, front cable management.

21

Zettonics     1U Chassis

TEN

120 LC Fibres.

The Zettonics TEN    1U chassis, mountable in 19" racks (other mounts available) provides user friendly and flexible connectivity when combined with Zettonics TEN    cassettes, harnesses, trunks and patch cords. The simple design allows five cassettes to be loaded from either the front or rear with easy, fast and secure latching. Zettonics TEN    is manufactured with industry-standard connectivity. Operators and installers benefit from Zettonics innovative push-pull design.

21

21

21

21

Zettonics     2U Chassis

TEN

288 LC Fibres.

The Zettonics TEN    2U chassis can accept up to 12 modules offering 288 fibres (144 per 1 U) on a standard LC quad adaptor. Sharing many of the same components of the 1U chassis, the Zettonics TEN    2U chassis is designed for high density applications. However, high density is not simply about the number of ports per rack unit. Rather, standardisation, flexible modularity and user friendly cable management, are most important for real-world network applications.

21

21

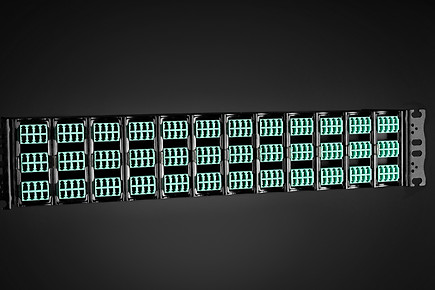

Zettonics 2U chassis, fitted with 12 cassettes - 288 LC ports.

0U - 1MOD.png

Zettonics 0U chassis


Zettonics 0U chassis

21

Zettonics     0U Solution

TEN

Additional U space, beyond the rack.

The Zettonics TEN    0U solution is designed to allow outside rack U space installation of Zettonics TEN     0U, 1U and 2U chassis. The chassis can be mounted in a variety of positions, including top of rack and side of rack, creating multiple connections outside of rack structures.

21

21

Zettonics 1U chassis

0U 12 MOD.png
0U 5 MOD.png

Zettonics 2U chassis


cassettes Banner.jpg

21

21

Zettonics     Cassettes

TEN

The Zettonics TEN    cassettes are designed for all data centres and enterprise networks, easy to handle and fast to install. Zettonics TEN    cassettes offer tool-less installation from either the front or rear. The cassettes can be housed in either 1U or 2U chassis, locked into place with a unique latching mechanism and connected to the network using Zettonics TEN    trunk cables and patch cords.

Given the unique design, both front and rear adaptor plates can be modified to build a cassette that meets the requirements of your application.

The Zettonics TEN    splice cassette is designed for quick and efficient installation. The removable front adapter plate enables splicing and connector loading to take place outside of the cassette. With simple fibre routing for ribbon and single fibre splices and cable entry suitable for M20 and M12 glands or 10mm copex tubing.

Easy to handle, fast to install.

21

21

21

21

Unique configurations, assembled to meet project requirements

Splice Cassette Aqua.jpg

Zettonics splice cassette.


Zettonics adaptor plate - SC.


Zettonics adaptors plate - LC.


Zettonics adaptor plate - SC/APC.


cabling Banner-v2.jpg

21

21

Zettonics TEN   Ultra low insertion loss MTP/MPO trunk cable for a 40G/100G direct connection. These trunk cables are recommended for high-density data centre applications. Our MTP/MPO trunk cables are fully tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current industry standards.

21

24 fibre OS2 trunk cable.

Zettonics APC Fanout.jpg

OS2 fan-out cable.

TEN

Zettonics     Fan-outs

21

21

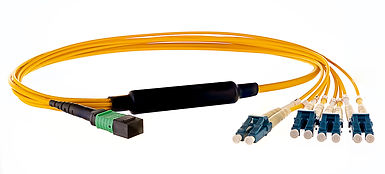

Zettonics TEN    MTP/MPO fan-out cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fibre patching in data centres which need space saving and reduce cable management troubles. It is optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and high-density data centre applications.

TEN

Zettonics     Patchcords

21

12/24 fibre MTP® micro cable assemblies designed and manufactured with low loss performance high demand network applications. They are available with standard or low loss Elite MTP® terminated on a 3mm ruggedised single jacket micro cable. These trunks are typically used in the main distribution area or the interconnection of active equipment with a backbone cabling infrastructure. Their small and compact size makes them an ideal solution for high density applications with high demands for advanced cable management and optimised airflow.

OS2 trunk cables.jpg

12 fibre OS2 patch cord.

Zettonics TEN    are manufactured using 50μm multimode fibre optimised for the use with 850nm VCSELS (vertical cavity surface emitting lasers). All assemblies are fully tested prior to delivery and supplied with test results. Most common connector types, configurations and lengths are available from stock, using 3mm (for additional ruggedising) or 2mm diameter cable on request. TEN   patch cords are supplied with a LSZH cable jacket as standard. Non-stocked configurations (length, colour, connectors and cable type) can be manufactured to meet specific requirements.

21

21

OS2 LC-LC Duplex patchcord.

All cables available in OS2,

OM3 & OM4

21

Read more of the Zettonics TEN   story.

TEN

Zettonics     Trunk Cable
